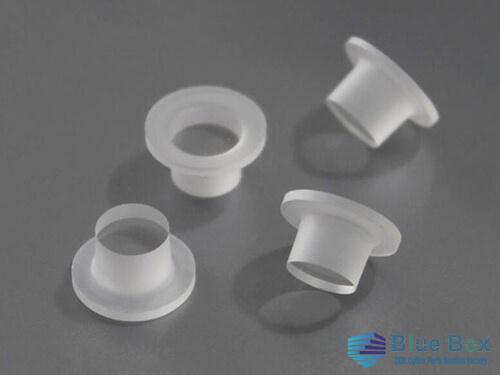

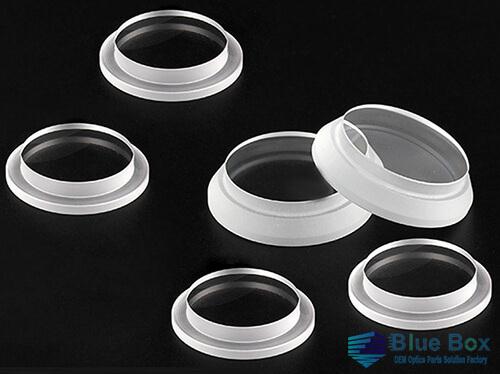

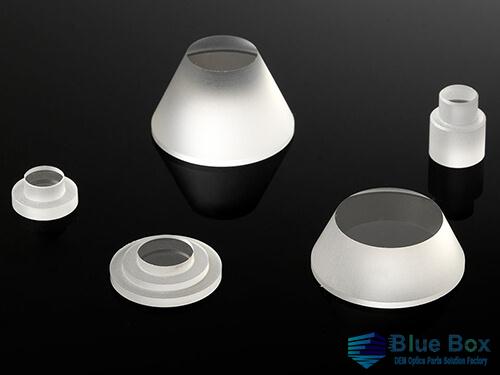

Sapphire step windows stand out as a specialty at Blue Box optics. Also known as T-Windows, these step windows excel in applications such as viewports, pressure, and vacuum situations. They are particularly well-suited as viewports for deep ocean vehicles, showcasing resilience to harsh saltwater conditions and debris, all while maintaining a thinner profile compared to traditional glass counterparts.

Optical windows utilized in high-pressure scenarios benefit from reduced thickness, and sapphire step windows deliver on this front. With a MOHS hardness of 9, second only to diamond, sapphire transmits light in the range of 190nm to 5000nm, making it an excellent choice for UV applications and mid-wave infrared.

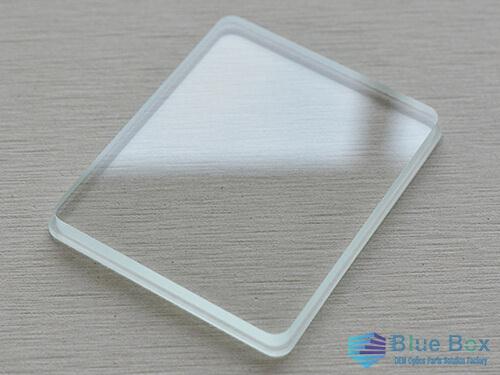

While round sapphire optical components are typically the most cost-effective, rectangular windows can also be produced, often cut from round stock. At Blue Box optics, we possess the necessary machinery to create custom-shaped windows as well, ensuring flexibility in meeting diverse requirements.
 Please contact us to get a free quote for your custom sapphire T-step windows projects.

The substrate of the sapphire optical window consists of synthetic sapphire crystal (Al2O3). Synthetic sapphire, a crystal ranking second only to diamonds in hardness, manifests as a single-crystal form of pure and transparent Al2O3. Its exceptional mechanical, optical, physical, and chemical properties position sapphire as an ideal material for designing and implementing high-performance systems. In comparison to other optical materials, sapphire stands out as the optimal choice for a broad spectrum of demanding environmental applications.

1. Aerospace: Sapphire windows find extensive use in aerospace equipment and instruments owing to their impeccable durability, corrosion resistance, high-temperature resistance, and broad spectral transmission range.

2. Sapphire flash lamps: Renowned for high-temperature resistance and low thermal expansion, sapphire serves as a protective window for robust lamps and flashlights, ensuring scratch resistance and preventing bursting.

3. Analytical instruments applications: In scenarios where the analyzed gas or liquid is highly corrosive, sapphire windows prove invaluable due to their corrosion-resistant properties. Moreover, their excellent transmittance across a wide spectrum from ultraviolet to infrared makes them widely applicable in analytical instruments.

4. Medical equipment applications: The outstanding durability of sapphire windows renders them indispensable in various medical applications, including laser medical instruments, laser beauty instruments, and endoscopes.

5. Optical applications: With the extensive spectral range of sapphire crystals, sapphire windows can be employed in a myriad of optical applications, spanning from ultraviolet to infrared. Their mechanical and physical properties confer an advantage over optical windows made from alternative materials.

6. Illumination applications: The heat resistance of sapphire windows makes them ideal for use as protective materials in high-brightness lighting applications.

7. Watches and industrial instruments: Sapphire windows serve as protective covers for watches or gauges, offering resistance to scratches, robustness, and a guarantee against bursting.

Blue Box optics is a reliable and professional custom sapphire glass parts manufacturer that provides precision and high-quality custom sapphire parts. Our OEM custom sapphire glass parts including sapphire domes, kerf sapphire domes, sapphire hemispherical domes, sapphire hyper-hemispherical domes, aspheric sapphire domes, spherical sapphire domes, conformal sapphire domes, U-shape sapphire domes, optical domes, special-shaped sapphire hyper-hemisphere domes, sapphire lenses, sapphire IPL light guides, sapphire tubes, sapphire capillary tubes, sapphire windows, sapphire round windows, sapphire rectangular windows, sapphire large windows, sapphire T-step windows, sapphire rods, sapphire tapered rods, sapphire piston/plunger rods, sapphire screw rods, micro sapphire rods, sapphire cones, sapphire wedges, sapphire optical prisms, sapphire prisms, sapphire dove prisms, sapphire substrates, sapphire blocks, sapphire connectors, sapphire watch crystals, sapphire watch lens, sapphire watch covers, sapphire single dome, sapphire double dome, sapphire blades, sapphire holes parts, sapphire iregular parts, and so on. Factory supply super competitive prices, saving you 20-80% on purchasing costs. Contact us to get a free quote for your custom sapphire glass parts project now.
