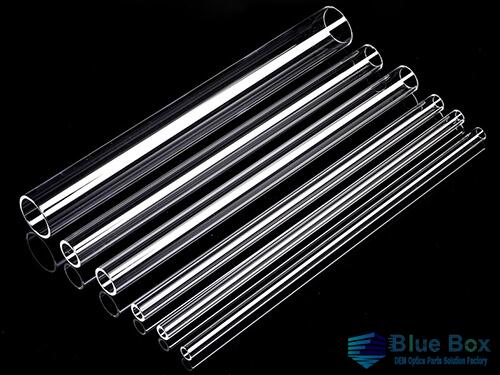

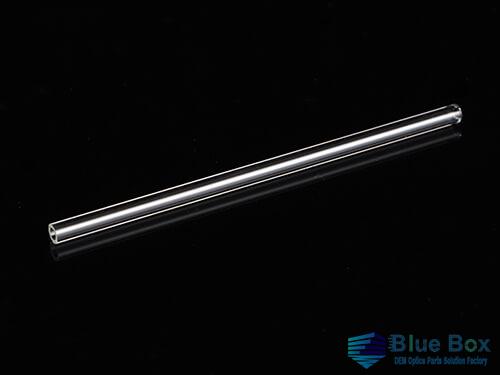

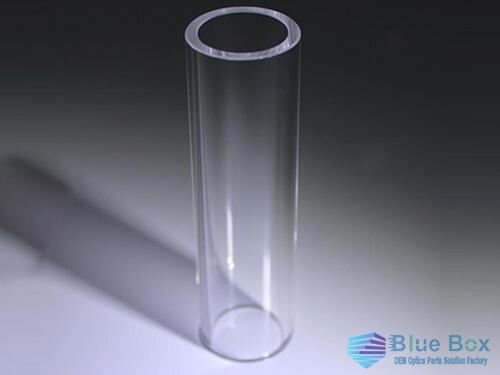

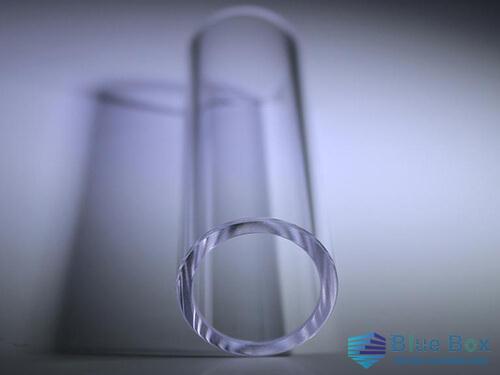

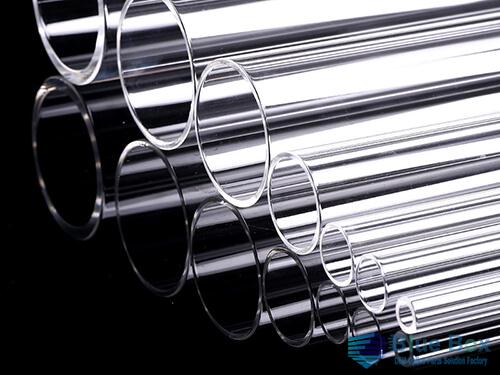

Sapphire Tube is a type of transparent single-crystal alumina material renowned for its exceptional chemical stability and superior mechanical, thermal, and optical properties. When compared to commonly used transparent materials like glass and quartz, Sapphire Tube outperforms them significantly.

Sapphire boasts outstanding optical clarity, physical resilience, and chemical inertness. It stands as the hardest oxide crystal, retaining its strength and resistance even under elevated temperatures. Moreover, it exhibits a wide transmission spectrum, excellent electrical insulation properties, and efficient thermal conductivity, particularly at low temperatures.
Its remarkable attributes include high hardness, strength, and resistance to extreme temperatures, making it capable of withstanding harsh chemical environments such as fluorine plasma, acids, and alkaline solutions.

At Blue Box optics, we specialize in crafting custom sapphire tubes tailored to meet diverse industrial and scientific requirements. Our products are engineered precisely according to customer specifications.
We welcome inquiries to discuss your specific sapphire needs.

Sapphire tubes emerge as prime materials for a diverse array of industrial applications, including semiconductor processing, testing, analytics, and lamp production. In testing and analytical contexts, they find utility in biological and chemical sample analysis, nuclear magnetic resonance spectroscopy, mass spectroscopy, thermo-optic temperature measurement, and inline petroleum processing analysis.

They serve various roles such as plasma containment, process gas injection, thermocouple protection, water treatment, and high-intensity lamp envelopes.

With its exceptional mechanical strength, sapphire tubes, especially those with thick walls, provide robust housing for sensors or lasers, shielding them from extreme pressures. Their polished outer and inner surfaces enable laser light emission and facilitate precise light measurement. These tubes are particularly suited for high-pressure systems and vacuum environments.

Sapphire tubes are highly preferred for plasma containment owing to their chemical inertness and corrosion resistance, ensuring no particle generation even under extreme plasma conditions.

Retaining their structural integrity at high temperatures and pressures, sapphire tubes excel as lamp materials, supporting UV, visible, and IR applications in hostile environments, thanks to their thermal stability, excellent thermal conductivity, and optical transparency.

Blue Box optics offers a variety of sapphire tubes, including “as-grown,” finely ground, and polished options, catering to a wide range of applications. Customization options such as angled shapes, slots, holes, and bonded configurations are available to meet precise customer specifications.

1. Remarkable transparency spanning wavelengths from 0.3 μm (UV) to 5 μm (IR). Polished sapphire tubes find applications in various analytical instruments requiring transmission of ultraviolet, visible, and infrared light.

2. Unparalleled hardness and scratch resistance render the sapphire tube virtually impervious to scratches, ensuring its integrity even in the harshest environments.

3. Boasting a high melting point of 2030°C, excellent thermal conductivity, and heat resistance, the sapphire tube proves ideal for high-temperature applications.

4. Demonstrating exceptional chemical stability and corrosion resistance, the sapphire tube’s innate inertness allows it to withstand aggressive chemicals.

5. Exhibiting outstanding electro-insulation properties, characterized by a stable dielectric constant, minimal dielectric loss, and excellent electrical insulation.

6. Possessing high strength, rigidity, abrasion resistance, heat resistance, corrosion resistance, and plasma resistance, making it an optimal choice for various demanding applications.

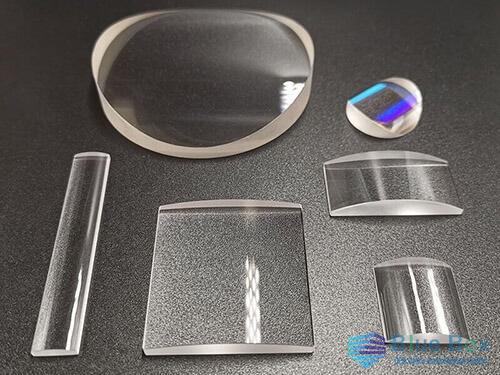

Blue Box optics is a reliable and professional custom sapphire glass parts manufacturer that provides precision and high-quality custom sapphire parts. Our OEM custom sapphire glass parts including sapphire domes, kerf sapphire domes, sapphire hemispherical domes, sapphire hyper-hemispherical domes, aspheric sapphire domes, spherical sapphire domes, conformal sapphire domes, U-shape sapphire domes, optical domes, special-shaped sapphire hyper-hemisphere domes, sapphire lenses, sapphire IPL light guides, sapphire tubes, sapphire capillary tubes, sapphire windows, sapphire round windows, sapphire rectangular windows, sapphire large windows, sapphire T-step windows, sapphire rods, sapphire tapered rods, sapphire piston/plunger rods, sapphire screw rods, micro sapphire rods, sapphire cones, sapphire wedges, sapphire optical prisms, sapphire prisms, sapphire dove prisms, sapphire substrates, sapphire blocks, sapphire connectors, sapphire watch crystals, sapphire watch lens, sapphire watch covers, sapphire single dome, sapphire double dome, sapphire blades, sapphire holes parts, sapphire iregular parts, and so on. Factory supply super competitive prices, saving you 20-80% on purchasing costs. Contact us to get a free quote for your custom sapphire glass parts project now.
